RG316 Coaxial Cable

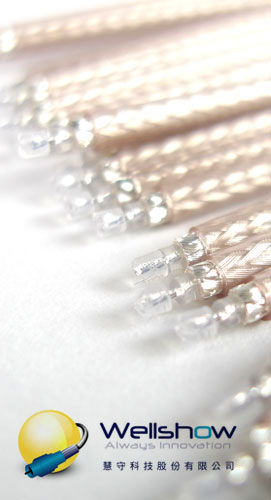

RG316 Single Braid Shield Coaxial CableRG316 Single Braid Shield Coaxial Cable

Model Name: D3160115AS

Specification

  • Conductor: Diameter 0.53mm, #26AWG, 7/0.175, Silver plated annealed copper wire
  • Dielectric: Diameter: 1.53mm, FEP
  • Outer conductor: 16/5/0.092, Silver plated annealed copper wire
  • Jacket: Diameter: 2.53mm, FEP, Color: Brown
  • Nom. Impedance: 50 Ohms
  • Nom. Capacitance: 95.8 pF/m
  • VSWR (0 – 6 GHZ): Max 1.3
  • Dielectric strength: A.C. 1000V for 1 minute1
    Attenuation (dB/100m) 100MHz 2GHz 4GHz 6GHz 8GHz 12GHz
    34.1 140 205 263 319 480

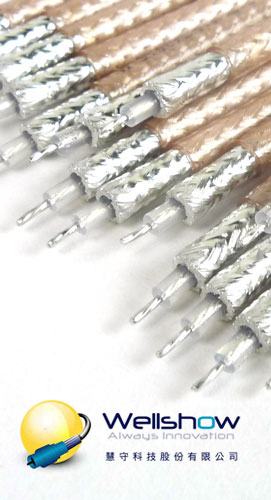

RG316 Double Braid Shield Coaxial CableRG316 Double Braid Shield Coaxial Cable

Model Name: D316D115AS

Specification

  • Conductor: Diameter 0.53mm, #26AWG, 7/0.175, Silver plated annealed copper wire
  • Dielectric: Diameter: 1.53mm, FEP
  • Outer conductor:
    • Braid shield 1: 16/5/0.092, Cross No. 13, Coverage 92.3%, Silver-Coated Copper
    • Braid shield 2: 16/5/0.092, Cross No. 13, Coverage 84.2%, Silver-Coated Copper
  • Jacket: Diameter: 2.93mm, FEP, Color: Brown
  • Nom. Impedance: 50 Ohms
  • Nom. Capacitance: 95.8 pF/m
  • VSWR (0 – 6 GHZ): Max 1.3
  • Dielectric strength: A.C. 1000V for 1 minute
    Attenuation (dB/100m) 100MHz 2GHz 4GHz 6GHz 8GHz 12GHz
    34.1 140 205 263 319 480

Product Application

GPS Antenna, RF Connector, Cable Assembly
